Max. Querschnitt: 1200 mm²
Max. Maße (Ø x L): 320 x 900 x 288 (mm)
Max. Gewicht: 27,5 kg
Systemspannung Ur: 72 kV

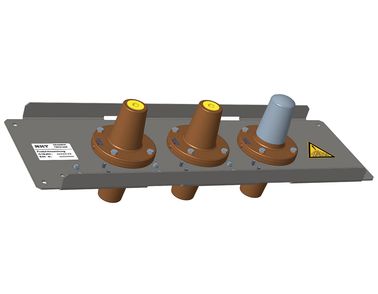

Produktart: Termination system
Anwendung: Termination system for connection of submarin cable cores to dropper cables
DIN EN 50299 Normen: EN 50673, IEC 60840
