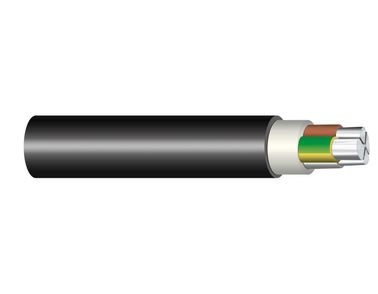

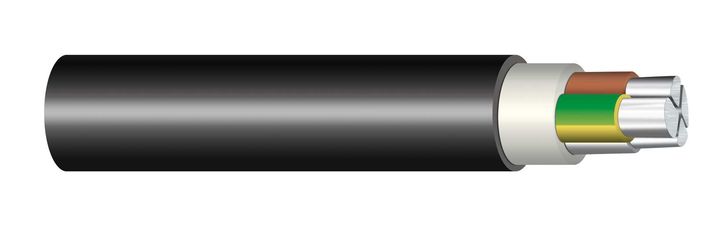

The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.
Material Leiter
Aluminium
Material Isolation
XLPE
Material äußere Ummantelung
PE
Kerntyp
Mehrkern
Bildschirm
Nein
Prüfen der Spannung
4 kV
Max. Betriebstemperatur
+70°C
Min. Betriebstemperatur
-35°C
Min. Lagertemperatur
-35°C
Max. Temperatur Kurzschluss
+140°C
Min. Temperatur bei der Verlegung
-5°C
Standard / Norm
TP-KK-145/03
Halogenfrei
Ja
